DSV Pisces VI
Charter rates
On Request
About

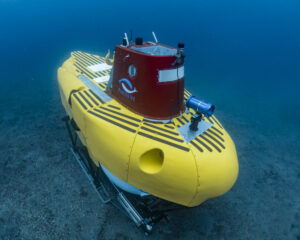

Versatile by design, Pisces VI is equipped with a myriad of tools and science equipment to support a wide range of underwater missions.
A team of expert engineers and operators can customise the submarine to meet the specific requirements of your project.
The submersible can be chartered for as short as one day at its home base in Tenerife. But Pisces VI is also ideal for efficient worldwide operations at a fraction of the typical cost.
One of Pisces VI’s most distinctive advantages is the compact footprint of the submarine and its fully equipped Mission Control with mobile workshop that fit neatly into its standard shipping container. This unique portability allows for seamless transport and rapid deployment anywhere in the world.
A defining feature of Pisces VI is its environmentally responsible ballast system. Unlike conventional subs that rely on heavy steel weights, Pisces VI uses seawater as ballast, eliminating impact on the subsea environment. This innovative approach enables safe and sustainable diving in marine protected areas and delicate ecosystems without compromise.
Location
More Information
| General | |
| Manufacturer | International Hydrodynamics Corporation, ltd. (HYCO), Canada |
| Model | DSV Pisces VI |
| Type | Deep Submergence Vehicle (DSV) |
| Classification Society | Lloyd’s Register |
| Depth-rating | 2,180meter / 7,155 ft |
| Capacity | Nominally 3 (one pilot and two observers), but certified for 4 persons |
| Size (L x W x H) – metric | 556 cm x 220 cm x 349 cm |
| Size (L x W x H) – imperial | 18′3″ x 7′3″ x 11’6″ |
| Weight | 9,500 kg / 21,000 lb |
| Pressure Hull | |
| Material | HY100 Steel, 3 conical viewports |
| Hatch | Steel |
| Battery | |
| Type | Lead-acid |
| Capacity | 40 kWh |
| Endurance | Nominally up to 8 hours (legally up to 14 hours) |
| Propulsion & Performance | |
| Thruster Type | Brushless DC Rim-Driven |
| Thrusters Horizontal | 2 x 525N |
| Thruster Vertical | 2 x 525N |
| Advertised Speed | 3 knots |
| Safety Systems | |
| Locating System | Radio Beacon and Xenon Strobe |
| Emergency Life Support | 120 hours |
| Dropweight | Yes (manual hydraulic release by pilot) |
| Communication & Tracking | |
| Surface | VHF |
| Underwater | 10 kHz through-water comms |
| Tracking | Sonardyne Mini Ranger 2 |
The submersible comes installed with the following accessories:
- Imaginex 360 degree Scanning Sonar
- 2 x 6-function Robotic Arm
- USBL Tracking System
- 2 x 4K video camera
- Slurp Gun
- Sediment Core Samplers
- CTD Auto Logging Set
- Nisken Water Sample Rack
The following ancillary equipment is also part of the package:
- Battery Charger
- Spare Parts Kit
- Manuals
- Topside communication and tracking system
Pisces VI is stationed in Tenerife, one of the Canary Islands that are part of Spain.
Pisces can be containerised and transported efficiently and cost-effectively to any location.
Please contact us for current charter rates.
