C-Explorer 3

Asking Price: On Request
Depth-rating
0 m
Occupants
0
Endurance
0 hrs
Weight
0 kg
Year of Build
Dives Logged
0
C-Explorer 3 Red - Starboard Bow

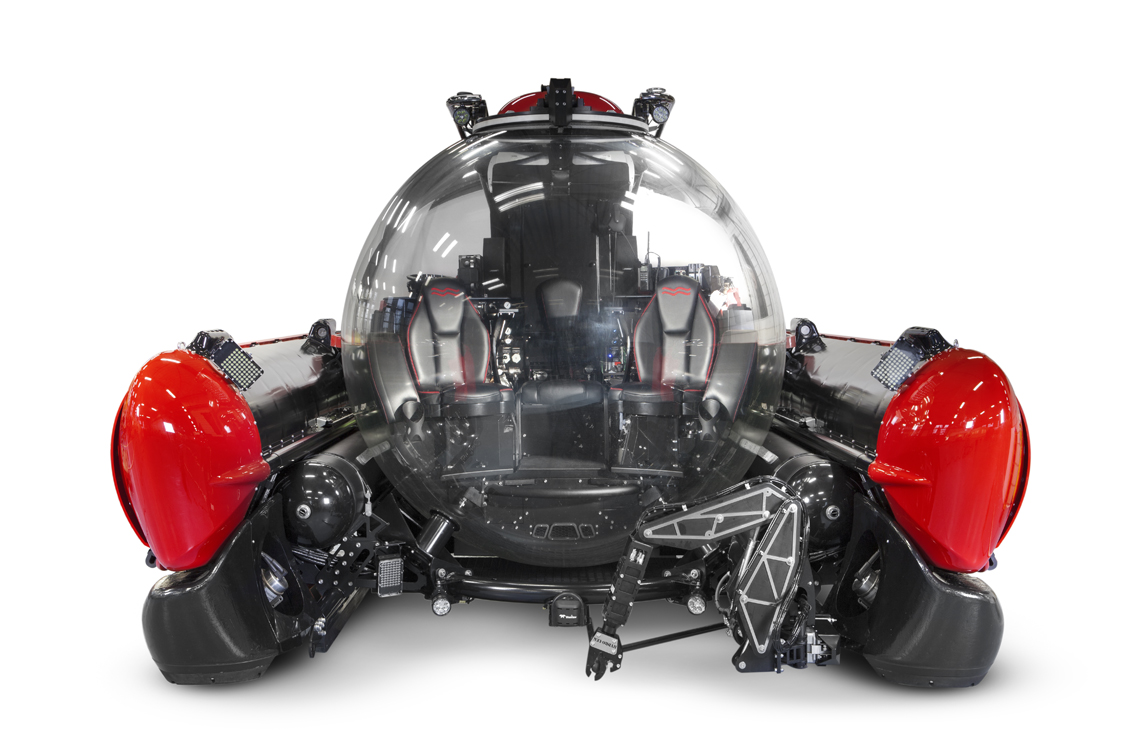

C-Explorer 3 Red - Bow
C-Explorer 3 - Interior_1
C-Explorer 3 - View Hatch

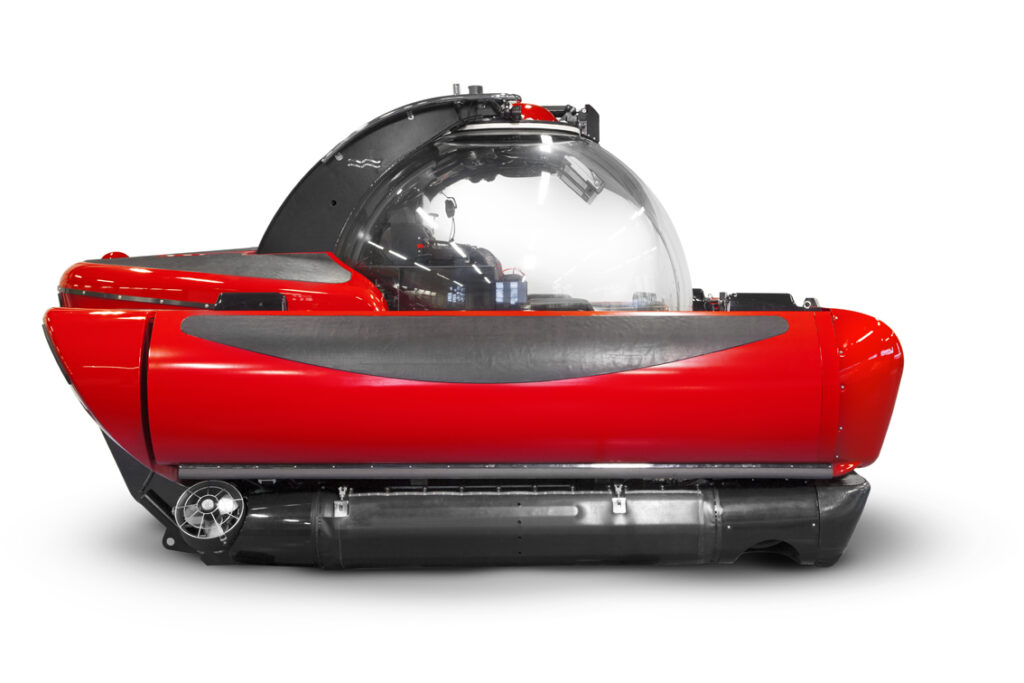

C-Explorer 3 Red - Starboard
C-Explorer 3 Red - Stern Starboard
C-Explorer 3 Red - Stern

About

The U-Boat Worx C-Explorer 3 is a pioneering full-acrylic three-person submersible that set new standards for underwater exploration in the yachting and charter industry.

It offers breathtaking 360° views and an exceptionally spacious, comfortable interior.

This particular unit was proven in commercial operations and engineered for reliability, the C-Explorer 3 combines advanced technology with simplicity and elegant design, making it an outstanding choice for private owners, yacht integration, or professional expedition use.

C-Explorer 3_submersible_diving_1
C-Explorer 3_submersible_diving_2
C-Explorer 3_submersible_diving_4
C-Explorer 3_submersible_diving_5
C-Explorer 3_submersible_diving_8
C-Explorer 3_submersible_diving_9
C-Explorer 3_submersible_diving_11
C-Explorer 3_submersible_diving_13
C-Explorer 3_submersible_diving_15
C-Explorer 3_submersible_diving_17
C-Explorer 3_submersible_diving_18
Edit
General
ManufacturerU-Boat Worx B.V., the Netherlands
ModelC-Explorer 3
Classification SocietyDNV
Depth-rating300 meter / 1,000 ft
Capacity1 pilot, 2 passengers
Size (L x W x H) – cm423 cm x 321 cm x 233 cm
Size (L x W x H) – ft13.9 ft × 10.5 ft × 7.6 ft
Weight6,100 kg / 13,500 lbs.
Pressure Hull
MaterialFull Acrylic Sphere
HatchAluminium
Battery
TypeLi-ion
Capacity42 kWh
Advertised Endurance18 hours
Propulsion & Performance
Thruster TypeBrushless DC
Thrusters Horizontal2 x 6.0 kW
Thruster Vertical (vectored)4 x 5.5 kW
Advertised Speed3 knots
Safety Systems
Safety BuoyYes, 450 meter emergency recovery rope
Dive PreventionIn case hatch is not closed and locked
Emergency Life Support96 hours
DropweightYes (manual hydraulic release by pilot)
Communication & Tracking
SurfaceVHF
Underwater25 kHz through-water comms
TrackingLinkQuest Tracklink USBL

The submersible comes installed with the following accessories:

  • Blueview Sonar
  • USBL Tracking System (one-way)
  • Full External Lights Package

Optionally other optional extras like a 4K camera system and robotic manipulators can be installed during service.

The following ancillary equipment is also part of the package:

  • Battery Charger
  • Spare Parts Kit
  • Manuals
  • Topside communication and tracking system
  • Dome Cover

First launched in 2014 for a cruise operation, this C-Explorer 3 has conducted numerous dives from different cruise ships.

After the sub’s last season on board in Antarctica, she was put in storage mode and is now ready for a new owner.

The submersible is currently undergoing a comprehensive refit and 10-year classification survey at the U-Boat Worx factory.

Depending on client requirements, the sub can be ready for sea trials in as little as four months, subject to the manufacturer’s workload and any additional upgrades or customisations requested beyond the standard refit scope.

Sea Trials with DNV and U-Boat Worx, as well as operator training will be coordinated with the new owner to ensure a smooth delivery and thorough handover process.

SUB71 Guarantees

  • Certification

    Submersibles listed through SUB71 undergo a comprehensive inspection and are, or will be, certified by a recognised Classification Society.

  • Training & Support

    In collaboration with the manufacturer, SUB71 ensures operational training for the new owner and ongoing technical support.

  • Verified Ownership

    SUB71 guarantees that all listed subs come with verified legal documentation, clear title, and full transfer of ownership with no encumbrances.
