C-Explorer 5

Asking Price: On Request
Depth-rating
0 m
Occupants
0
Endurance
0 hrs
Weight
0 kg
Year of Build
Dives Logged
0

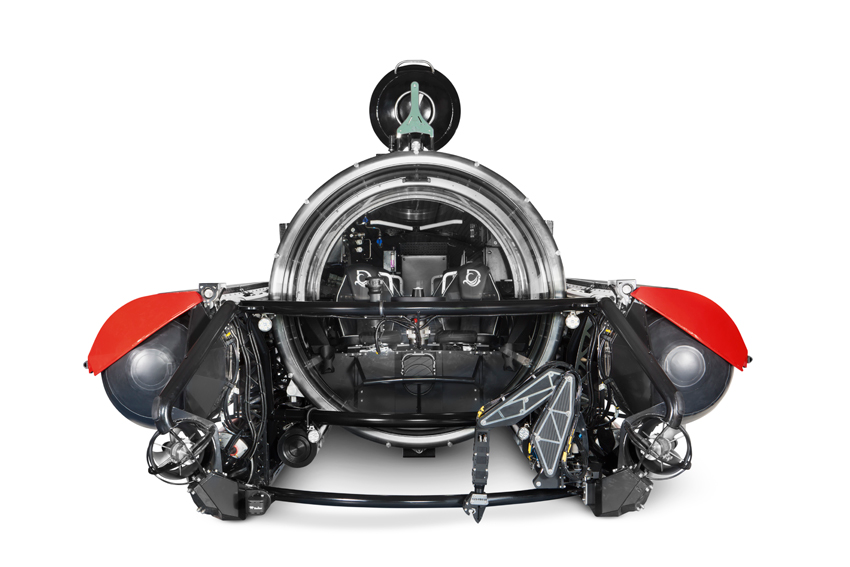

C-Explorer 5 Front Open
Bow of the U-Boat Worx C-Explorer 5 MKII with robotic manipulator arm
Comfortable passenger seats in the 5-seater submersible
Through-hatch view of the pilot station of the private submarine
View of submersible with hatch, battery pods and ballast tanks
Sternview of the C-Explorer 5 with air and oxygen cylinders

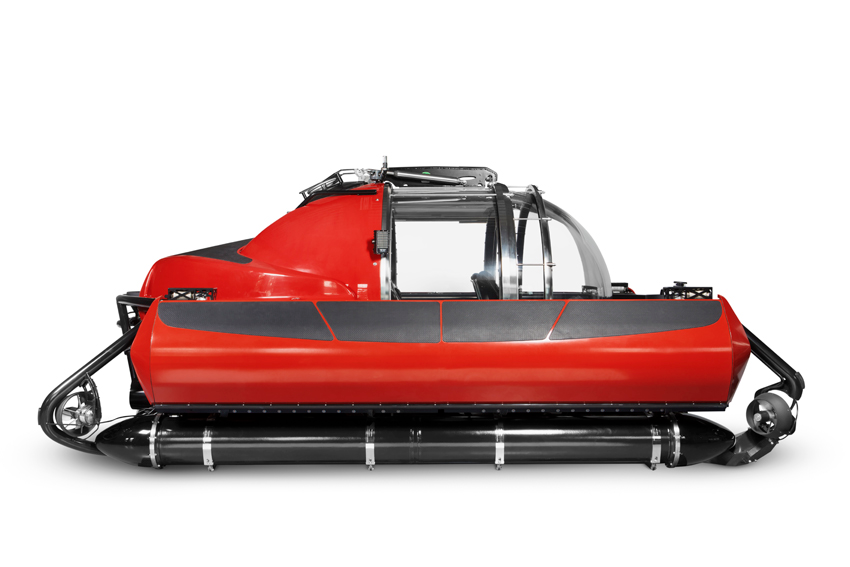

C-Explorer 5 luxury submersible sideview

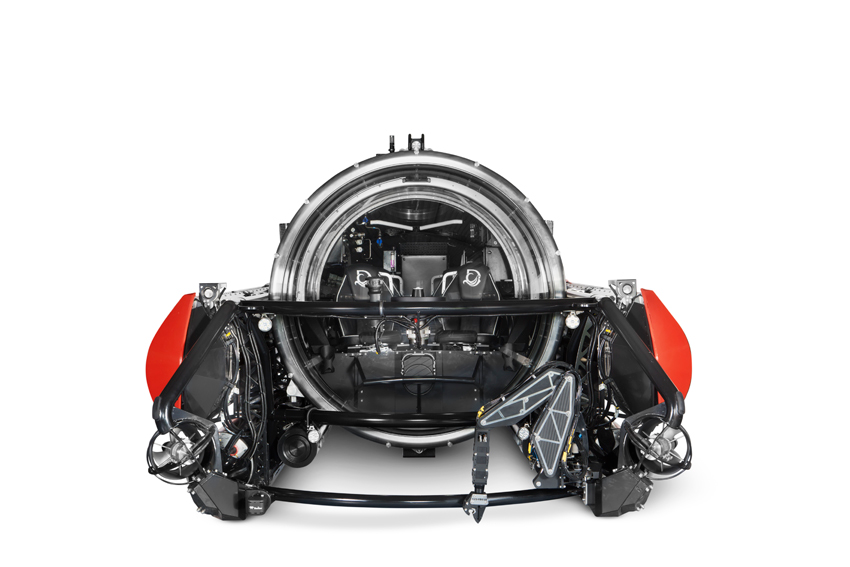

C-Explorer 5 Front Sideview

About

Regularly dubbed the “subsea limousine”, the C-Explorer 5 from U-Boat Worx offers a new dimension of private luxury beneath the waves — seating one pilot and four guests in an air-conditioned, 360° panoramic sphere capable of exploring depths of up to 200 meters.

This luxury pre-owned submersible has been meticulously engineered, impeccably maintained, and is now ready for its next visionary owner.

Originally launched to offer exclusive dive experiences to discerning cruise guests aboard a luxury liner, the C-Explorer 5 later operated as a tourist submersible in the Caribbean, delighting adventurers from around the world.

Her sister vessels serve aboard explorer yachts, research platforms, and private expeditions, confirming the C-Explorer 5’s reputation as the ultimate combination of versatility and experience.

Submersible pilot operating the submarine on the deck
Excellent surface stability of 5-person tourist submarine
Submarine sailing on the surface in Curaçao
Following at whale shark
Researchers diving during deepsea expedition
Manta ray flying over C-Explorer 5 submarine in Mexico
View of 5-person submarine in Curaçao
Passengers in front of the C-Explorer 5 submersible
Sideview of Hydra submarine diving in ocean
General
ManufacturerU-Boat Worx B.V., the Netherlands
ModelC-Explorer 5
Classification SocietyDNV
Depth-rating200 meter / 650 ft
Capacity1 pilot, 4 passengers
Size (L x W x H) – cm511 cm x 299 cm x 225 cm
Size (L x W x H) – ft16.8 ft × 9.8 ft × 7.4 ft
Weight7,350 kg / 16,200 lbs.
Pressure Hull
MaterialAcrylic hemisphere, Acrylic Cylinder, Steel Stern Hull with hatch
HatchSteel
Battery
TypeLi-ion
Capacity42 kWh
Advertised Endurance16 hours
Propulsion & Performance
Thruster TypeBrushless DC
Thrusters Horizontal (vectored)4 x 5.5 kW
Thruster Vertical2 x 6.4 kW
Advertised Speed3 knots
Safety Systems
Safety BuoyYes, 450 meter emergency recovery rope
Dive PreventionIn case hatch is not closed and locked
Emergency Life Support96 hours
DropweightYes (manual hydraulic release by pilot)
Communication & Tracking
SurfaceVHF
Underwater25 kHz through-water comms
TrackingEvologics USBL

The submersible comes installed with the following accessories:

  • Blueview Sonar
  • USBL Tracking System (two-way)
  • Full External Lights Package

If required, other optional extras like a 4K camera system or scientific collection equipment can be installed during service.

The following ancillary equipment is also part of the package:

  • Battery Charger
  • Spare Parts Kit
  • Manuals
  • Topside communication and tracking system
  • Acrylic Viewports Cover



This C-Explorer 5 is a Mark II design, developed following U-Boat Worx’s introduction of the original five-seater models a few years earlier.

Over her distinguished career, this submersible has operated across the globe — from Southeast Asia to Antarctica and the Caribbean — performing dives from cruise ships, private yachts, and the Sub Center Curaçao, a premier shore-based submarine operation in the Caribbean.

Following her period in tourist operations, she was returned to the manufacturer for a complete overhaul, which is now nearing completion and will be finalised upon sale of the unit.

The C-Explorer 5 is nearing completion of a comprehensive factory overhaul and can be redelivered with a new 10-year classification survey performed at the U-Boat Worx facility.

Depending on the client’s specific equipment requirements, the submersible can be ready for sea trials within a few months, subject to the manufacturer’s production schedule.

Sea trials with DNV and U-Boat Worx, along with operator training, will be coordinated directly with the new owner to ensure a seamless delivery and thorough handover process.

The submersible will be delivered with a full manufacturer’s warranty.

SUB71 Guarantees

  • Certification

    Submersibles listed through SUB71 undergo a comprehensive inspection and are, or will be, certified by a recognised Classification Society.

  • Training & Support

    In collaboration with the manufacturer, SUB71 ensures operational training for the new owner and ongoing technical support.

  • Verified Ownership

    SUB71 guarantees that all listed subs come with verified legal documentation, clear title, and full transfer of ownership with no encumbrances.
